Usage:

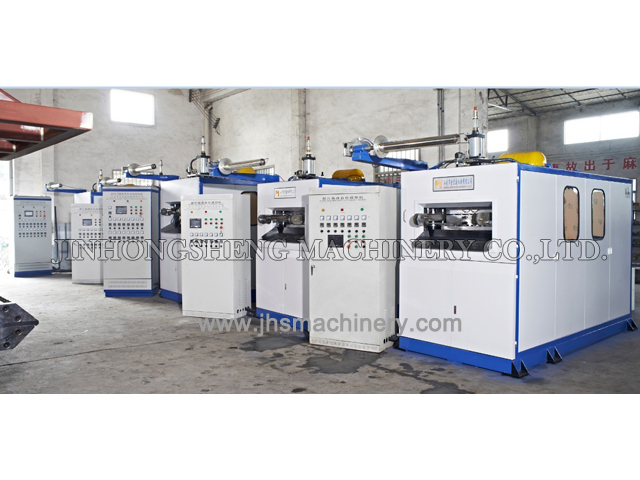

HYC Series Automatic Hydraulic Plastic Cup Thermoforming Machine is widely used to produce disposable water drinking cups, ice-cream cups, disposable cup/bowl for yoghurt, lids, dishes, plates, food containers and etc by PP/PS/PET/PVC/PLA plastic sheet rolls.
Features:
HYC Series Automatic Hydraulic Plastic Cup Thermoforming Machine is one of our flagship products. We keep manufacturing these machine models for many years because of warmly welcome from our users.
This machine works full-automatically from sheet roll feeding->heating->molding->formed products-> waste scrap winding. It saves labor cost and increases manufacturer’s profit.
This machine adopts auto sheet roll unwinder, pin-chain sheet feeding controlled by gear motor with inverter, 4-pillar mold guiding, hydraulic pressure drive of bottom mold movement, stretching of plug inside upper mould is controlled by air cylinder and PLC control with touch panel operation.
Main Technical Parameter:
|
Model |
HYC-660 |
HYC-680 |
|
Max. Forming Area |
660 x 300 mm |
680 x350 mm |
|
Running Speed |
15-35 Stroke / min |
15-35 Stroke / min |
|
Approx. Sheet width required for feeding. |
500 –660 mmin rolls. |
500 –660 mmin rolls. |
|
Mode of cutting arrangement. |
In mould automatic |
In mould automatic |
|
Sheet thickness Range.
|
0.20 –2.0 mm |
0.20 –2.0 mm |
|
Used Material |
PP, PS, HIPS, PET, PVC,PLA |
PP, PS, HIPS, PET, PVC,PLA |
|
Max. Forming depth, i.e. cup height. |
120/180 mm |
120/180 mm |
|
Oil Pump Motor Power |
7.5KW |
11KW |
|
Max. Sheet roll diameter. |
800 mm |
800 mm |
|
Temperature Controller & Thermocouple. |
PID K-Type |
PID K-Type |
|
Type of Mould |
Multi cavity 1 - 3 row. |
Multi cavity 1 - 4 row. |
|
Approx. Electrical Consumption |
30KW/hr |
35KW/hr |
|
Approximate Dimension |
L3450×W1500×H2300(mm) |
L3500×W1500×H2300(mm) |
|
Approximate Weight |
4000Kg |
4300Kg |
