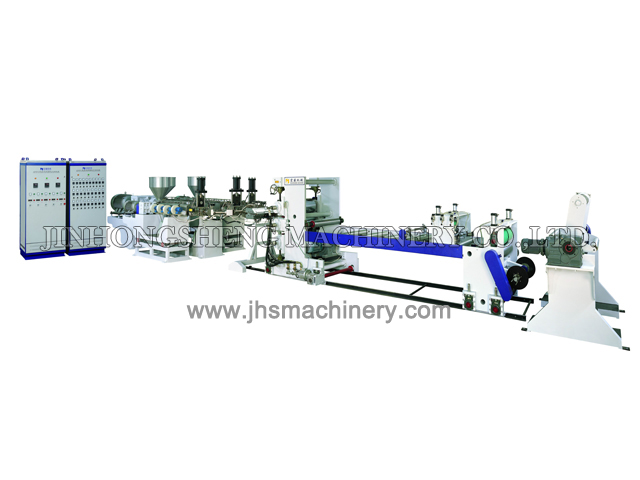

HDPC Series Vertical Multi-Layer Plastic Sheet Co-Extrusion Line

Product Info:

Product name: HDPC Series Vertical Multi-Layer Plastic Sheet Co-Extrusion Line

Product Catalog: Sheet Extrusion Line

OnLine Service:

Print this Page	Bookmark this
Skype Online	E-mail Us
PDF Download

【Prev Products】	【Next Products】

Description	Send Inquiry

Usage:

HDPC Series Vertical Multi-Layer Plastic Sheet Co-Extrusion Line is mainly used to produce various kinds of top grade multi-layer sheets of PP, PE and HIPS.

Major Construction Features:

1. The main parts, such as screw barrel, screen changer and T-die, adopt superior 38CrMoAIA material, which is featured by high hardness, anticorrosive advantages.

2. The special designed screw adopts big L/D Ratio to ensure the good plasticizing, stable extrusion, even sheet thickness, smooth and high output.

3. Screen Exchanger: It adopts hydraulic style fast screen exchange with double filters.

4. The divider and die head of the out composite design make proportion of the lamination layer easy to adjust.

5. Special Roller Temperature Controlling Device can adjust the temperature of the three rollers to eliminate internal stress of the producing sheets.

6. Gear pump, individually control of three calender roll and etc are optional according to requirements.

Model	HDPC-660	HDPC-720	HDPC-1000	HDPC-1400
Sheet Width	≤660mm	≤720mm	≤1000mm	≤1400mm
Sheet Thickness	0.3-2.0mm
Max. Extrusion Capacity	≤150-200Kg/h	≤250Kg/h	≤300Kg/h	≤400Kg/h
Main/Auxiliary Screw Dia.	50-90-50 mm	65-100-65 mm	70-105-70 mm	80-120-80mm
L/D Ratio	33:1
Layer	≤ 5
Main/Auxiliary Motor Power	11-37-11KW	18.5-45-18.5KW	22-55-22KW	30-75-30KW
Overall Power	125KW	145KW	190KW	250KW
Overall Dimension	12.03.33.2M	13.03.33.2M	14.03.33.2M	15.03.33.2M
Weight	6.5T	7.5T	10.5T	13.0T
Power Supply	380V/50HZ, Tri-phase, Four-wire (special voltage available)
