Usage:

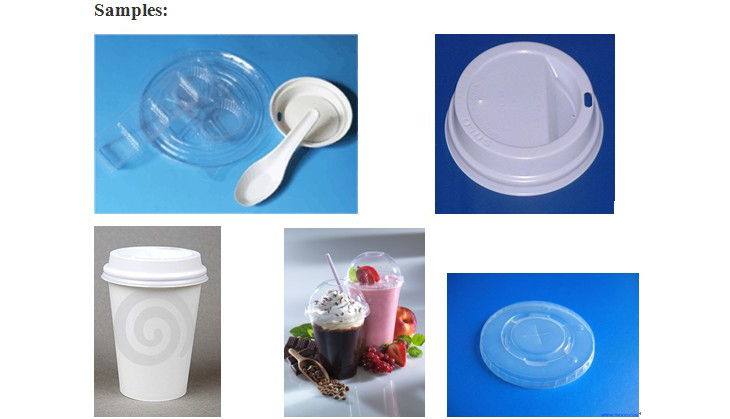

This machine is specially designed for making disposable HIPS/PS/PVC/PET lids for plastic/paper cups, mini soup spoons, trays for medicine and etc.
Characteristic:
1.This machine adopts sheet roll feeding, heating, molding, hole or cross punching, triming, finished products transmission automatically, which saves labor and avoids product pollution during the production.
2.This machine is controlled by PLC with interface, which is easy operation and maintenance.
3.The appearance of the machine is perfect. Its surface is made by high quality stainless steel, which is strictly in accordance with “GMP”, as well as “QS” standard .
4.The journey of this machine is adjustable, and easy to change the moulds for different sizes of products.
In a word, this is a perfect machine with small workshop requires, less electricity consumption, less labor invests, less waste sheet appears, but high output, favorable price, easy operation and maintenance.
Main Technical Parameter:
|
Model |
HBG-340A |
HBG-340B |
HBG-500 |
|
Suitable Material |
PS/HIPS/PVC/PET |
PS/HIPS/PVC/PET |
PS/HIPS/PVC/PET |
|
Journey Range |
30-160mm |
30-120mm |
60-300mm |
|
Max Forimng Area |
340×120mm |
320×120mm |
470×290mm |
|
Max Forimng Depth |
25mm |
45mm |
47mm |
|
The Power of Heater |
1.5KW*2pcs |
1.5KW*2pcs |
2KW*2pcs |
|
Motor Power |
1.5KW |
1.5KW |
2.2KW |
|
Required Sheet Width |
340mm |
340mm |
500mm |
|
Required Sheet Thickness |
0.15-0.5mm |
0.15-0.5mm |
0.15-0.7mm |
|
Air Pressure |
0.5MPa |
0.5MPa |
0.6-0.8Mpa |
|
Air Consumption |
0.6-0.8m3/min |
0.6-0.8m3/min |
0.6-0.8m3/min |
|
Water Consumption(recycle) |
60 liters/hr |
60 liters/hr |
60 liters/hr |
|
Punching Frequency |
15-40 times/min |
15-35 times/min |
15-35 times/min |
|
Total Power of Electric Source |
380V 50HZ 4.5KW |
380V 50HZ 4.5KW |
380V 50HZ 8KW |
|
Weight |
800Kg |
800Kg |
2400Kg |
|
Dimensions |
2200×800×1500mm |
2200×800×1500mm |
3500×1000×1800(mm) |
If you have any enquiry about quotation or cooperation, please feel free to email us at market@jhsmachinery.com or use the following enquiry form. Our sales representative will contact you within 24 hours. Thank you for your interest in our products.
